Deciding on a battery for our bus turned out to be pretty involved. Our bus came with 4 deep-cycle lead acid batteries (only 2 of which were even hooked up) and a small 750-watt inverter that connected to literally 1 outlet inside. We spent hours researching chemistries, capacities, and configurations. Fortunately, with the power of the Internet, we had the advantage of having other folks do some research for us.
technomadia.com
boldandadventurous.com
wheelingit.us

At their core most batteries work the same way - they store electricity at some capacity (usually measured in Amp-Hours (Ah)) at some electric potential (measured in Volts V). To get the amount of energy stored in the battery we calculate the watt-hours (or Kilowatt Hours (kWh)) by multiplying the Volts by the rated Amp Hours.

Of course, the traditional route is to go with the tried-and-true deep-cycle lead-acid batteries. These come in various sizes, voltages, and configurations. But they are basically the same chemistry that most cars use to start the engine. There were several problems with this:

  1. We know we want the flexibility to "boondock" or dry camp without hookups for more than just a day or two so capacity is a major consideration.
  2. Lead-acid batteries are big.
  3. Lead-acid batteries are heavy.
  4. Lead-acid batteries wear out fairly quickly.
  5. Lead-acid batteries are cheaper but still expensive.
  6. Lead-acid batteries can only reliably be used to 50% of their stated capacity.
  7. Lead-acid battery capacity suffers when large loads are placed on them (known as Puekert's Law).
  8. Lead-acid batteries are slow charging (topping off lead acid batteries can be extremely slow)

During our research, we ran across several RV families that were using Lithium batteries. These are more like the batteries that power your cell phone or laptop. The advantages of these batteries over lead acid are:

  1. Much smaller than lead-acid.
  2. Much lighter than lead acid.
  3. Many more charge cycles (usually measured in thousands as opposed to hundreds with lead acid)
  4. Much higher "usable" capacity - safely use up to 80% or more of the capacity.
  5. Less prone to voltage sag under heavy loads and less prone to Peukert's losses.
  6. Faster Charging - Lithium batteries can be "fast charged" up to 100% of their capacity

The main disadvantage of Lithium batteries is the high cost. High-end batteries can cost over $6000 for around 4 kWh capacity. Even more "reasonably" priced lithium cells (like the GBS Li-ion Iron Phosphate based cells) usually cost over $3000 for around 5 kWh. This can easily be 5x-7x the cost of lead-acid batteries of similar capacity.

We have tried to estimate how much power we would need while out on the road. We want to run mostly electric appliances (fridge, microwave/convection oven, and induction burners). We would also love to be able to run our A/C on our batteries. This has been a much-debated topic: gonewiththewynns.com and technomadia.com. We are still likely to use propane for hot water heating and supplemental heat.

A few napkin calculations based on how we live at home (running the refrigerator, cooking, charging devices, using lights, and running A/C) gave us a conservative estimate of around 10 kWh. Of course, with batteries more is almost always better if you have the room and weight capacity.

Now, if only there was a way to avoid paying over $6000 ...

Before I continue, there is probably something I should disclose. I am a hacker ... I don't normally like to do things "the normal" way. I modify or tinker with almost anything I come into contact with. This might be a big reason why we decided on an old 1964 bus as opposed to a shiny new modern motorhome. Part of the fun is not knowing what you are doing and just figuring it out. With this in mind - I figured I could maybe hack my way into a less expensive way to get the battery we wanted.

About this time I came across a guy on YouTube who was building his own Powerwall - similar to the Tesla Powerwall but of his own creation using old used laptop battery cells. I played with this stuff for some time and even looked for old laptop batteries on Ebay and Craigslist. Well, it turns out that old laptop batteries are much harder to find now (probably because of videos like this and electric bike videos). Not only that, but it was going to take about 3000 cells or so to make a large enough battery.

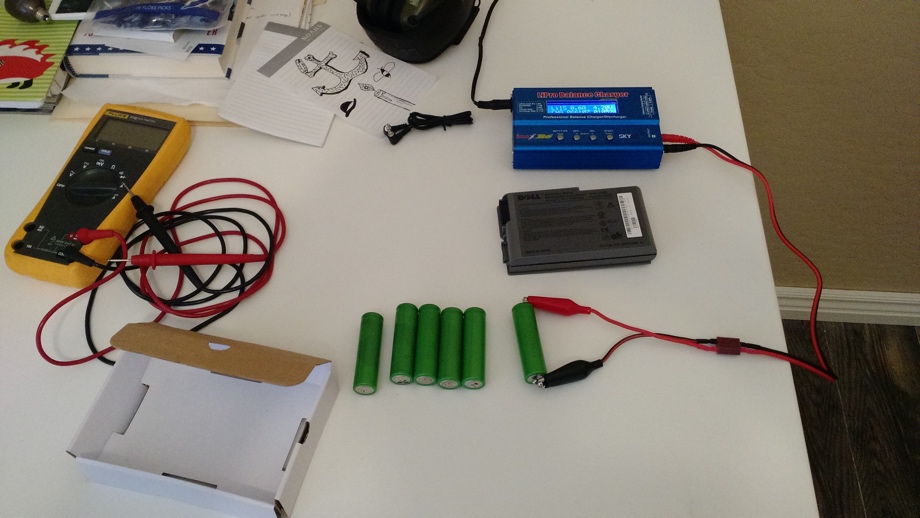

picture of 16550 cells

Not long after that, I discovered another guy who wanted to power his electric scooter with a bigger battery. His choice for the project was some cells out of a salvage Nissan Leaf. He has a great series of videos about the Nissan Leaf battery and how to reconfigure the modules. This really got me thinking about leveraging a Nissan Leaf pack for our RV House battery. The Nissan Leaf pack offers several advantages over the DIY Powerwall:

  1. The cells are much larger: 48 "modules" make up the 24 kWh that the Nissan Leaf stores (much easier to manage than the 6000 cells for an equivalent laptop battery DIY Powerwall)
  2. The cells are air-cooled. Tesla packs and Chevy Volt packs are designed to be water-cooled.
  3. Easier to source than the 6000 cells (but not that much easier - I had a hard time initially finding one for less than $5000)
  4. The modules are fairly easy to reconfigure for different voltages.

After a little more research, we decided this might present a pretty cool option. 1 Nissan Leaf battery pack has 24 kWh of power. Even playing it safe and only using 80% of the pack's power gives us over 19 kWh usable power. A little more research after that we discovered that the best packs to use are those in 2013 or later Nissan Leaf cars. These are known as the "Lizard" packs and are supposed to be much more durable under high heat conditions.

We started looking at salvage yards (fancy name for junk yards) online throughout the southwest. Since the battery is so heavy (about 650 pounds in its case), I fully expected to have to drive somewhere with a truck or trailer to pick it up. So we narrowed our search to places we could drive within a day or so. As luck would have it, we found one in California. I called and to my surprise, he did have it! Just out of curiosity, I asked about shipping. "Ummm... it's pretty heavy ... that's going to be about $150.00". I couldn't believe it - that is amazingly cheap to ship a 650 pound, awkwardly sized parcel. Well, that was mostly correct. It's actually $150 to a commercial establishment with a loading ramp. I happen to live in a house. That was going to push the shipping price closer to $500.00. Hmm ... what can I do? "Well ..." Chris said, "We could just ship it to a UPS freight center ..." BRILLIANT! Chris regretted to inform me that there would also be a core charge: another $150.00. I faxed off my information (who still uses fax?!) and the battery was ours a few short days later.

So what was the total cost for this 24 kWh battery for our bus? We found the battery itself out of a 2013 Nissan Leaf with about 36,000 miles on it for $2500.00, plus the $150.00 core charge and another $150.00 to ship it. Total: $2800.00.

Honestly, we would have a hard time buying lead acid batteries of a similar capacity for that much. For $3000 we could have bought 5 kWh of GBS Li-ion Iron Phosphate batteries. I know it's not an apples-to-apples comparison, but this is almost 5 times the capacity for less money.

The Nissan Leaf battery is also a different chemistry than the more "traditional" GBS or the high-end cells which use a chemistry called Iron Phosphate. The Nissan Leaf battery uses a chemistry called lithium manganate. This has some advantages and disadvantages. The Iron Phosphate packs are more "stable" under abuse. What this really means is they are less likely to catch fire if you run them outside their limits (by overcharging or undercharging them). The Iron Phosphate packs are also widely used - meaning there are more BMS options and configurations for these types of batteries. The advantage of the Nissan Leaf battery is energy density (other than the huge advantage of 1/5 the cost we already mentioned). The Nissan Leaf pack has more energy in less weight than the iron phosphate-based batteries: at 24 kWh this represents a weight savings of about 160 pounds (Total pack weight for the entire pack after you remove it from the metal 'shell' is about 400 pounds.)

So with my geeky-hacker side fully satisfied, I still had one problem left. The UPS freight people were kind enough to load the battery into the truck with a forklift. In all the excitement, I had not even considered how the heck was I going to get a 650 pound, awkwardly shaped metal box out of the truck without killing myself?
unloading Wow! This was a chore! It took about an hour of wiggling it this way and that to finally get it down the motorcycle ramp and onto a moving dolly.

Next, I opened up the external shell. This was also a bit of a chore. Watch the video to see the process:

Click here If you cannot see the video.

What's next?

  1. Remove the modules and reconfigure them. For now, we have decided to go with a 24V configuration. Since the leaf modules are 2S2P configuration - there is no easy way to make ~ 12V. Luckily many inverters take 24V batteries which can be configured by tying 3 modules in series for a 6S2P configuration yielding a working range of about 19.2V to 25.2V.
  2. Figure out the BMS. While many BMS options exist for the iron phosphate batteries, the lithium manganate batteries seem to get less love. We COULD run without a BMS but I think it is just too risky.
  3. Install and Wire up the battery. 48 modules should yield 16 24V "batteries" that we can then tie in parallel.
  4. Buy an Inverter. We are pretty sure we want to go with the Victron Multiplus inverters. They are pretty rad.
  5. Buy a DC-DC 24V to 12V converter. Since we are running 24V and most RV stuff is made to run on 12V we have to get a converter that "steps-down" the power.
  6. Design the solar setup. We have a fantasy about a huge solar array ...

As we stated earlier, we are experimenting. Hopefully, it all works the way we think it will. If not there is always plan B (spend more money).
